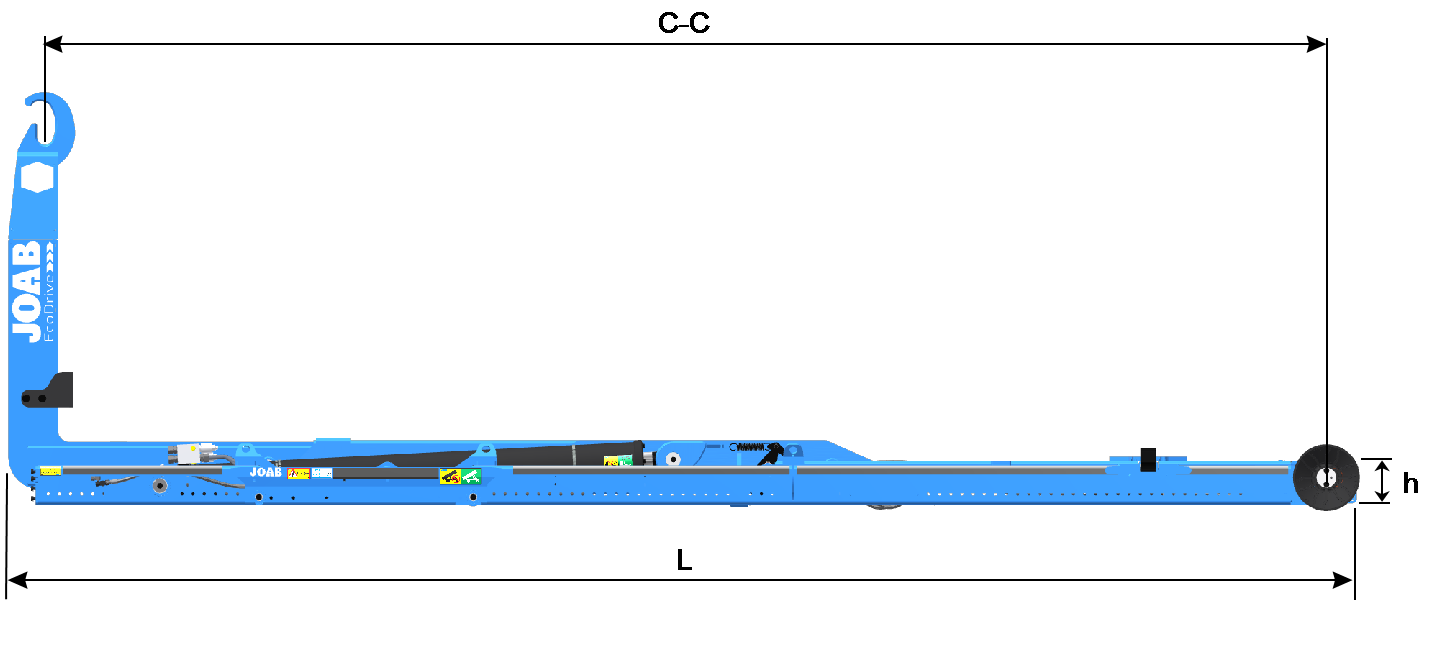

Specifications of the hooklift are provided below.
| Specification - L series | Value |
|---|---|
| Oil pressure | 240 bar - 320 bar |
| Recommended oil flow | 100 l/min |
| Maximum load capacity* | 18 – 30 ton |
| Maximum tip angle | 44º – 60º |
| Weight (Kg)* | 1950 kg – 2600 kg |
| Distance between the hook and rollers (C-C) | 4800 mm – 6150 mm |
| Total length (L) of the hooklift | 5240 mm – 6740 mm |
| Height (h)* | 196 mm – 198 mm |
*Dependent upon model
