Intermediate Section

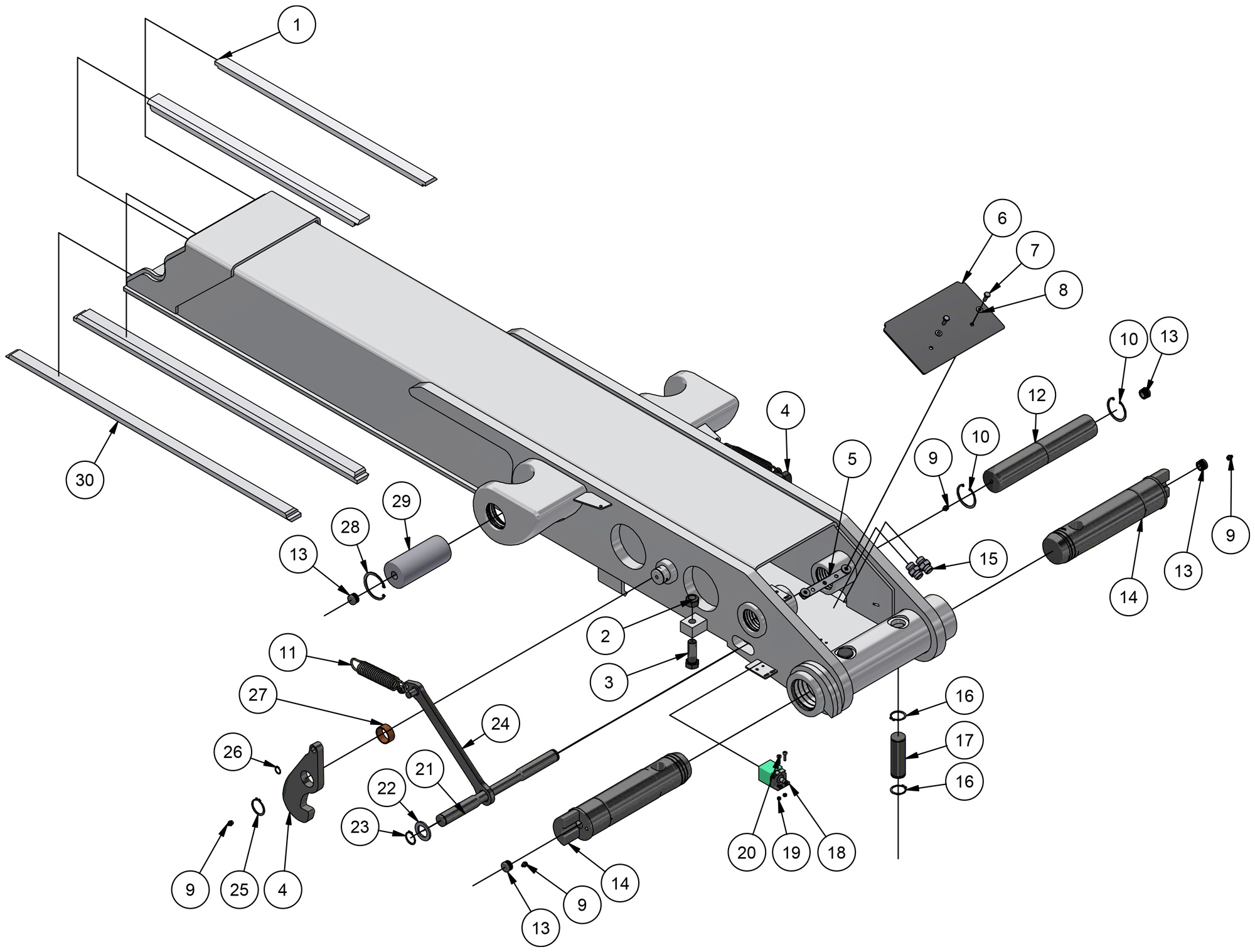

Table 7: Intermediate Section
Pos. Qty. Part Nr. Description
1 2 1009097 Glide plate
2 1 See Table 8 below Intermediate-section
3 2 2940 Nut
4 2 6575 Screw
5 2 1006720 Center-lock Stay - right side
6 1 1007330 Bracket for cover
7 1 1007332 Plastc cover
8 2 2839 Screw M6S
9 2 2943 Washer
10 5 3332 Grease nipple
11 2 4742 Circlip
12 2 1006571 Spring
13 1 1005822 Axel
14 5 2079 Plastic plug
15 2 1011075 Axel
16 2 1014429 Adapter
17 4 4719 Circlip
18 2 1005824 Axle
19 1 1011801 Inductive sensor
20 2 1234 Lock-nut Nyloc
21 2 1009013 Screw MRT
22 1 1005826 Axle
23 1 1005813 Washer
24 2 4721-1 Circlip
25 2 1006721 Center-lock Stay - left side
26 2 1002419 Circlip
27 2 1006208 Circlip
28 2 1006677 Bussning WB802
29 2 4749 Circlip
30 2 1005829 Axle
31 2 1012620 Glide plate
32 2 1806 Nut
33 4 2953 Washer
34 1 1015555 Ultrasonic sensor
35 2 1009201 Screw

The following table lists the part numbers for the intermediate-section with respect to model.

Table 8: Part numbers for Intermediate-section.
Model Model lengths Part Nr.
L21 & L24 4800 mm, 5000 mm, & 5200 mm 1016325
5400 mm & 5600 mm 1016326
5750 mm, 5950 mm, & 6150 mm 1016327
L21A & L24A 4800 mm, 5000 mm, & 5200 mm 1016328
5400 mm & 5600 mm 1016329
5750 mm, 5950 mm, & 6150 mm 1016330
L18 4800 mm, 5000 mm, & 5200 mm 1016319
5400 mm & 5600 mm 1016320
5750 mm, 5950 mm, & 6150 mm 1016321
L27 -- 1018960
